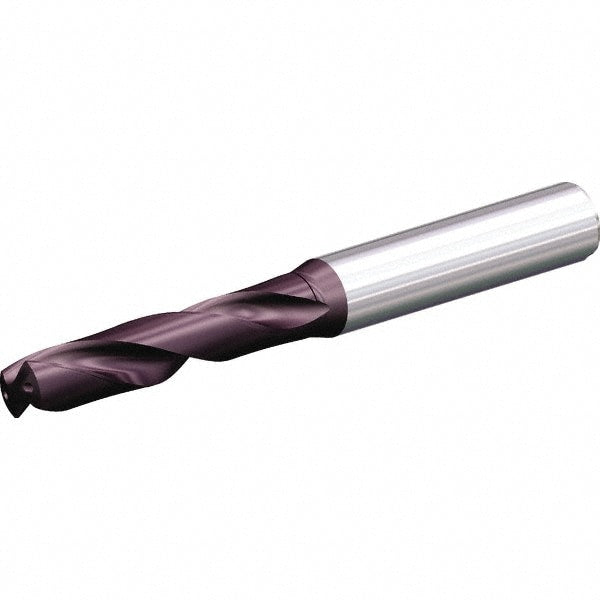

Screw Machine Length Drill Bit: 4.50 mm Dia, 140 deg Point, Solid Carbide
Item #: 38583860
Brand: Kennametal
Model #: 6358147
Product Specifications
| Drill Bit Size (mm) | 4.50 |
| Drill Bit Size (Decimal Inch) | 0.1772 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | AlTiN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel |
| Point Type | Standard |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Shank Diameter (mm) | 6.00 |
| Series | B210 |
| Proprietary Coating/Finish | AlTiN |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.6693 |
| Maximum Drilling Depth (mm) | 17.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Drill Point Length (mm) | 0.67 |
| Drill Point Length (Decimal Inch) | 0.0264 |
| Flute By Diameter Ratio | 3.5xD |
| Standards | DIN 6535; DIN 6537 |
| Flute Length (Decimal Inch) | 0.9449 |
| Flute Length (mm) | 24.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| Drill Bit Size Range (mm) | 3.50 - 5.00 |
| UNSPSC Code | 23241635 |
