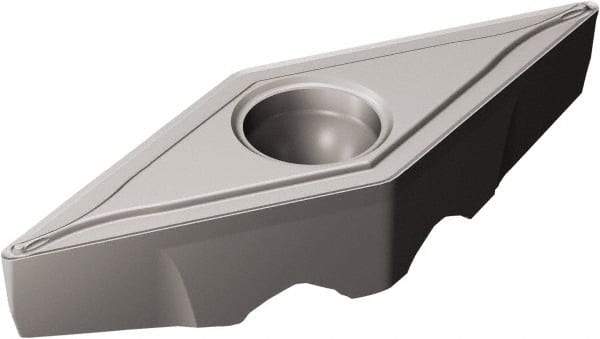

Sandvik Coromant - TRVB1302 F Grade H13A Carbide Turning Insert - Uncoated, 35° Triangle, 13mm Inscr Circle, 3/32" Thick, 0.2mm Corner Radius
Item #: 55021570
Brand: Sandvik Coromant
Model #: 5782732
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TRVB |
| Insert Size | 1302 |
| Material | Carbide |
| Length (mm) | 13.00 |
| Length (Decimal Inch) | 0.5118 |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0937 |
| Thickness (mm) | 2.38 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Chip Breaker | F |
| Hole Diameter (mm) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| ISO Number | TRVB1302FH13A |
| Relief Angle | 5 |
| Manufacturers Catalog Number | 5782732 |
| Primary Workpiece Material | K; S |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn TR |
| Maximum Depth of Cut (mm) | 12.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.5039 |
| Insert Holding Method | Screw |
| Shape | Triangle |
