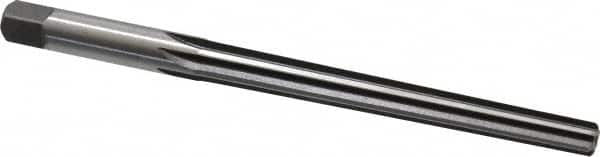

Cleveland - #5 Pin, 0.2994" Diam, 0.2409" Small End, 5/16" Diam Straight Shank, 2-13/16" Flute, Taper Pin Reamer
Item #: 63747059
Brand: Cleveland
Model #: C24260
Features and Benefits
Straight flute reamers are the most common and used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts such as keyways and cross sections.
| Product Specifications | |
|---|---|
| Taper Pin Size (Number) | #5 |
| Small End Diameter (Decimal Inch) | 0.2409 |
| Reamer Diameter (Decimal Inch) | 0.2994 |
| Flute Type | Straight |
| Shank Type | Straight |
| Overall Length (Inch) | 4-5/16 |
| Flute Length (Inch) | 2-13/16 |
| Shank Diameter (Inch) | 5/16 |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
| Material Application | Alloy Steel; Carbon Steel; Cast Iron; Plastics |
