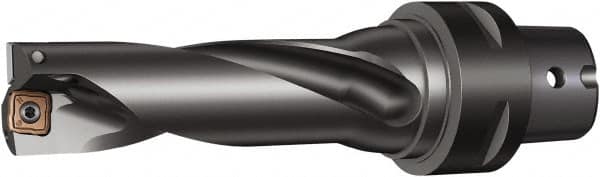

Sandvik Coromant - 133mm Max Drill Depth, 3xD, 43mm Diam, Indexable Insert Drill - 2 Inserts, C5 Modular Connection Shank
Item #: 54958509
Brand: Sandvik Coromant
Model #: 6340072
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 43.00 |
| Drill Diameter (Decimal Inch) | 1.6929 |
| Maximum Drill Depth (mm) | 133.00 |
| Maximum Drill Depth (Decimal Inch) | 5.2362 |
| Shank Type | Modular Connection |
| Modular Connection Size | C5 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.6457 |
| Maximum Drill Diameter (mm) | 41.80 |
| Overall Length/Projection (mm) | 234.00 |
| Overall Length/Projection (Decimal Inch) | 9.2126 |
| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Flute Length (mm) | 129.00 |
| Flute Length (Decimal Inch) | 5.0787 |
| Body Length (Decimal Inch) | 8.0043 |
| Body Length (mm) | 203.31 |
| Shank Length (mm) | 30.69 |
| Shank Length (Decimal Inch) | 1.2084 |
| Collar Diameter (mm) | 62.50 |
| Collar Diameter (Decimal Inch) | 2.4606 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.50 |
