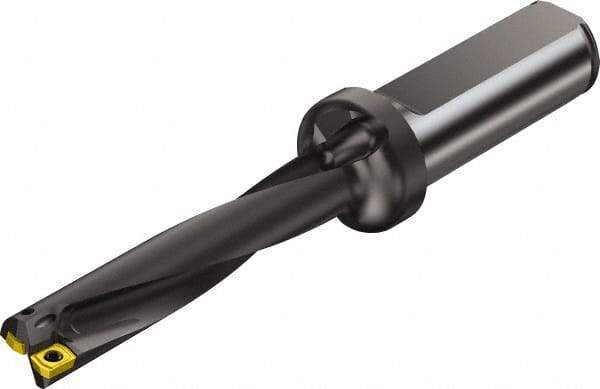

Sandvik Coromant - 7.357" Max Drill Depth, 5xD, 1.437" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Flange Shank - Benchmark Tooling

Sandvik Coromant - 7.357" Max Drill Depth, 5xD, 1.437" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Flange Shank


Item #: 54958319
Brand: Sandvik Coromant
Model #: 5723983
Exact Tooling IR#: 04

Product Specifications
Drill Style 880
Drill Diameter (Decimal Inch) 1.4370
Maximum Drill Depth (Decimal Inch) 7.3570
Shank Type Flange
Shank Diameter (Decimal Inch) 1.5000
Shank Diameter (Inch) 1-1/2
Cutting Direction Right Hand
Through Coolant Through Coolant
Drill Depth by Diameter Ratio 5xD
Toolholder Material Steel
Number of Drill Inserts 2
Maximum Drill Diameter (Decimal Inch) 1.5400
Overall Length/Projection (Decimal Inch) 11.1569
Insert Compatibility 880-070406H-C-GM; 880-0704W06H-P-GM
Flute Length (Decimal Inch) 7.1850
Body Length (Decimal Inch) 8.3775
Shank Length (Decimal Inch) 2.7794
Series CoroDrill 880
Radial Adjustment (-mm) 1.31
$977.16

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
