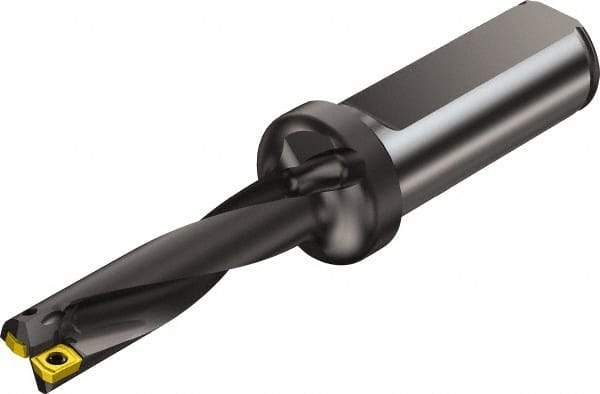

Sandvik Coromant - 176mm Max Drill Depth, 4xD, 43mm Diam, Indexable Insert Drill - 2 Inserts, 50mm Shank Diam, Flange Shank
Item #: 54956446
Brand: Sandvik Coromant
Model #: 5765461
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 43.00 |
| Drill Diameter (Decimal Inch) | 1.6929 |
| Maximum Drill Depth (mm) | 176.00 |
| Maximum Drill Depth (Decimal Inch) | 6.9291 |
| Shank Type | Flange |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.9685 |
| Maximum Drill Diameter (mm) | 44.00 |
| Overall Length/Projection (mm) | 287.00 |
| Overall Length/Projection (Decimal Inch) | 11.2992 |
| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Flute Length (mm) | 172.00 |
| Flute Length (Decimal Inch) | 6.7717 |
| Body Length (Decimal Inch) | 8.1224 |
| Body Length (mm) | 206.31 |
| Shank Length (mm) | 80.00 |
| Shank Length (Decimal Inch) | 3.1496 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.50 |
