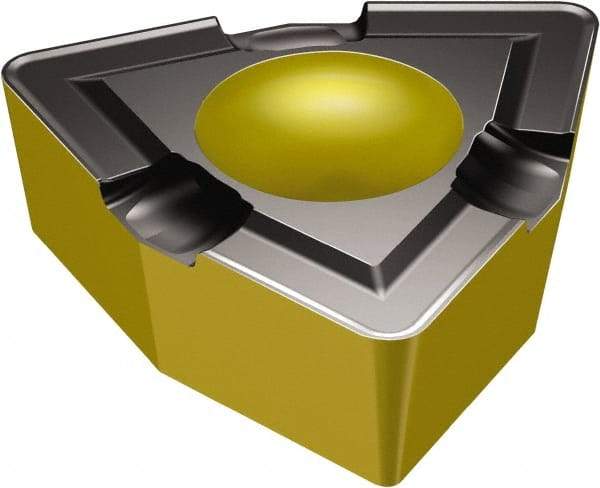

Sandvik Coromant - WCMX080412 GM Grade 1105 Carbide Indexable Drill Insert - TiAlN2 Finish, Trigon, 1/2" Inscribed Circle
Item #: 54953906
Brand: Sandvik Coromant
Model #: 6251740
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WCMX |
| Insert Size | 080412 |
| Material | Carbide |
| Manufacturer's Grade | 1105 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Shape | Trigon |
| Length (mm) | 8.69 |
| Length (Decimal Inch) | 0.3421 |
| Hole Diameter (mm) | 4.30 |
| Hole Diameter (Decimal Inch) | 0.1693 |
| Relief Angle | 7 |
| Coating | TiAlN2 |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Chipbreaker | GM |
