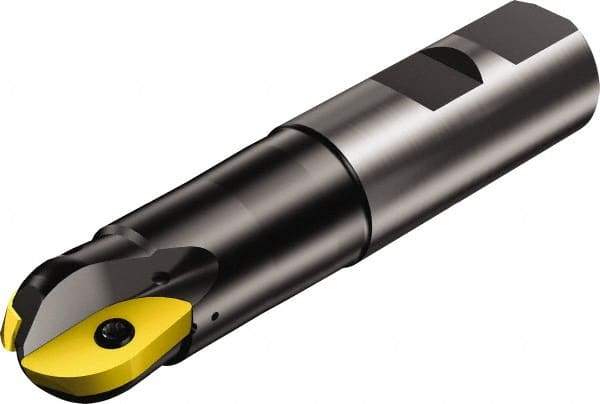

Sandvik Coromant - 1-1/4" Cut Diam, 1.114" Max Depth of Cut, 1-1/4" Shank Diam, 5.0311" OAL, Indexable Ball Nose End Mill - 5.0311" Head Length, Weldon Flat Shank, RA216.. M Toolholder, APMT 160408-M, RA216-32 06 Insert
Item #: 54952411
Brand: Sandvik Coromant
Model #: 5739310
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 1.1140 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1 1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | APMT 160408-M; RA216-32 06 |
| Toolholder Style | RA216.. M |
| Series | CoroMill 216 |
| Overall Length (Decimal Inch) | 5.0311 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 5.0311 |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 1.2500 |
| Maximum RPM | 18500 |
| Projection (Inch) | 2-3/4 |
| Projection (Decimal Inch) | 2.7500 |
