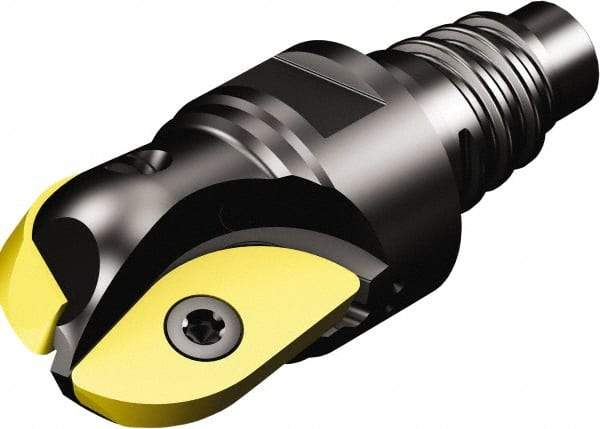

Sandvik Coromant - 1" Cut Diam, 0.893" Max Depth of Cut, 24.5mm Shank Diam, 2.3228" OAL, Indexable Ball Nose End Mill - 1.378" Head Length, E25 Modular Connection, RA216.. EH Toolholder, RA216-25 04 Insert
Item #: 54951645
Brand: Sandvik Coromant
Model #: 6550056
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.8930 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | E25 |
| Shank Diameter (mm) | 24.50 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | RA216-25 04 |
| Toolholder Style | RA216.. EH |
| Series | CoroMill 216 |
| Overall Length (Decimal Inch) | 2.3228 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.3780 |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 0.9646 |
| Maximum RPM | 12700 |
| Projection (Decimal Inch) | 1.3780 |
