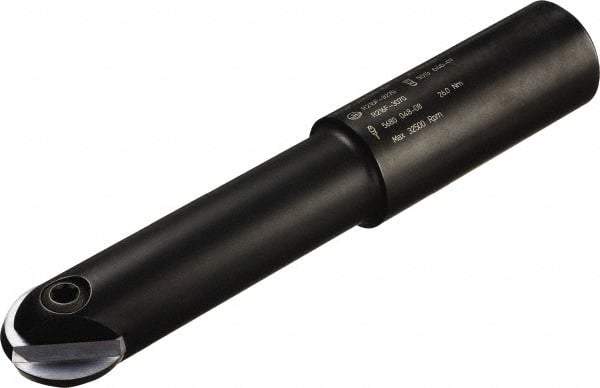

Sandvik Coromant - 12mm Cut Diam, 1.8mm Max Depth of Cut, 16mm Shank Diam, 145mm OAL, Indexable Ball Nose End Mill - 22.25mm Head Length, Straight Shank, R216F.. AC Toolholder, R216F-12.. Insert
Item #: 54951207
Brand: Sandvik Coromant
Model #: 5743693
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 1.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.0709 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | R216F-12.. |
| Toolholder Style | R216F.. AC |
| Series | CoroMill 216F |
| Overall Length (mm) | 145.00 |
| Overall Length (Decimal Inch) | 5.7087 |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Head Length (mm) | 22.25 |
| Head Length (Decimal Inch) | 0.8760 |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 0.6299 |
| Maximum RPM | 21000 |
| Projection (mm) | 97.00 |
| Projection (Decimal Inch) | 3.8189 |
