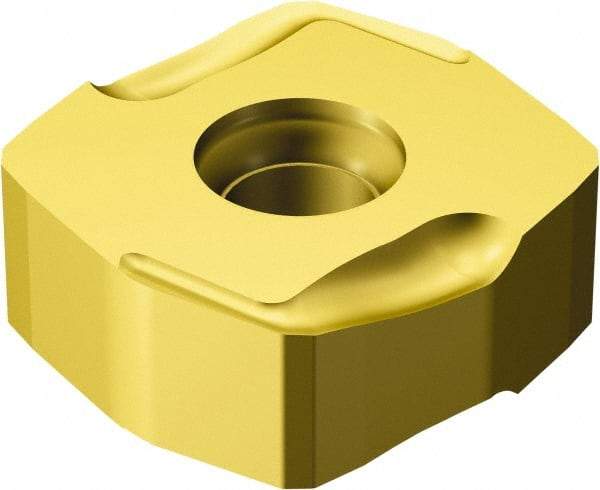

Sandvik Coromant - N3651505 KW4 Grade K20W Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 5.56mm Thick, 15mm Inscribed Circle, 0.55mm Corner Radius
Item #: 54942073
Brand: Sandvik Coromant
Model #: 5739004
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N365 |
| Insert Size | 1505 |
| Material | Carbide |
| Manufacturer's Grade | K20W |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 15.00 |
| Inscribed Circle (Decimal Inch) | 0.5906 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2189 |
| Corner Radius (Decimal Inch) | 0.0217 |
| Corner Radius (mm) | 0.55 |
| Hole Diameter (mm) | 4.60 |
| Hole Diameter (Decimal Inch) | 0.1811 |
| Relief Angle | 0.000 |
| Rake Angle | 20 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | KW4 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Cutting Edge Style | Negative Land/ER Treated |
| Manufacturers Catalog Number | 5739004 |
| ISO Number | N3651505ZNEKW4 K20W |
