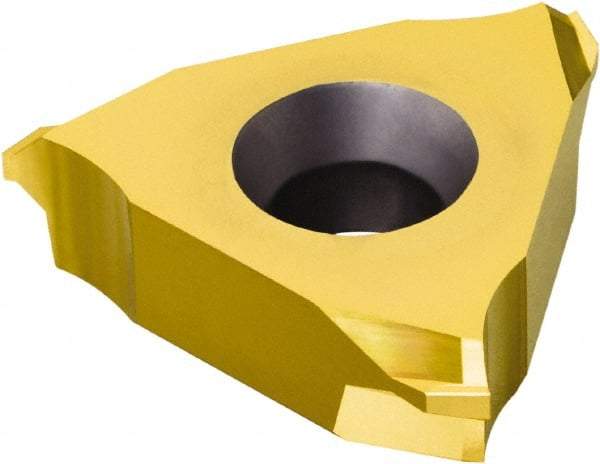

Sandvik Coromant - 3281341545 GC Grade 1025 Carbide Milling Insert - TiCN/TiN Finish, 4.5mm Corner Radius
Item #: 54938063
Brand: Sandvik Coromant
Model #: 5758851
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 328 |
| Insert Size | 1341545 |
| Material | Carbide |
| Manufacturer's Grade | 1025 |
| Coating | TiCN/TiN |
| Width (mm) | 4.15 |
| Width (Decimal Inch) | 0.1634 |
| Length (mm) | 4.89 |
| Length (Decimal Inch) | 0.1925 |
| Corner Radius (Decimal Inch) | 0.1772 |
| Corner Radius (mm) | 4.50 |
| Relief Angle | 6.000 |
| Coating Process | PVD |
| Shape | Triangle |
| Insert Hand | Right Hand |
| Chipbreaker | GC |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Cutting Edge Style | Negative Land/ER Treated; Sharp |
| Manufacturers Catalog Number | 5758851 |
| ISO Number | 328R13-415 45-GC 1025 |
