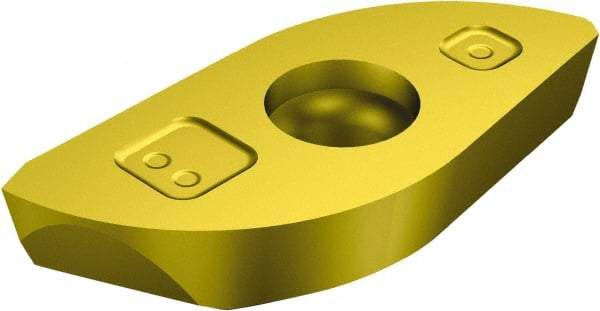

Sandvik Coromant - R2161002 EM Grade 2040 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 2.38mm Thick
Item #: 54937875
Brand: Sandvik Coromant
Model #: 5743615
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R216 |
| Insert Size | 1002 |
| Material | Carbide |
| Manufacturer's Grade | 2040 |
| Coating | TiCN/Al2O3/TiN |
| Thickness (mm) | 2.38 |
| Thickness (Decimal Inch) | 0.0937 |
| Hole Diameter (mm) | 2.20 |
| Hole Diameter (Decimal Inch) | 0.0866 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | CVD |
| Shape | Ball Nose |
| Insert Hand | Right Hand |
| Chipbreaker | EM |
| Cutting Edge Style | Negative Land/ER Treated |
| Manufacturers Catalog Number | 5743615 |
| ISO Number | R216-10 02 E-M 2040 |
