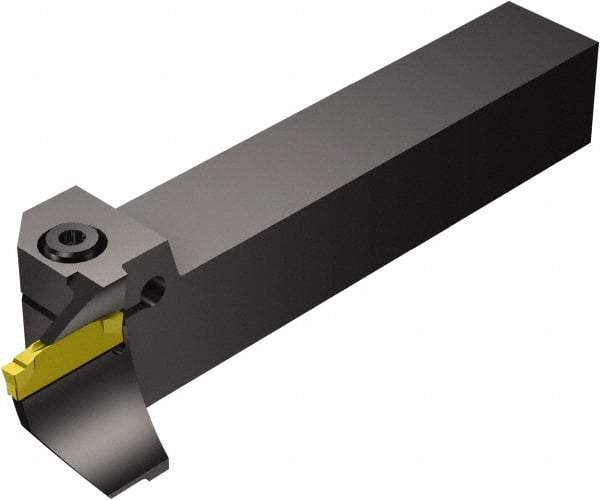

Sandvik Coromant - F123, Left Hand, 1" Max Depth of Cut, Indexable Grooving Tool Holder - N123H2-0400-0004-TF Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 54936950
Brand: Sandvik Coromant
Model #: 5732827
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Type | Face Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | F123 |
| Insert Compatibility | N123H2-0400-0004-TF |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | CoroCut 1-2 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Seat Size | H |
| Minimum Hole Diameter (Decimal Inch) | 8.6614 |
| Maximum Bore Depth (Decimal Inch) | 1.8880 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0390 |
| Maximum Groove Outside Diameter (mm) | 500.00 |
| Minimum Axial Groove Inside Diameter(mm) | 220.00 |
| Head Length (Decimal Inch) | 1.0000 |
| Manufacturers Catalog Number | 5732827 |
| Toolholder Material | Steel |
| Shank Diameter (Decimal Inch) | 1.0000 |
