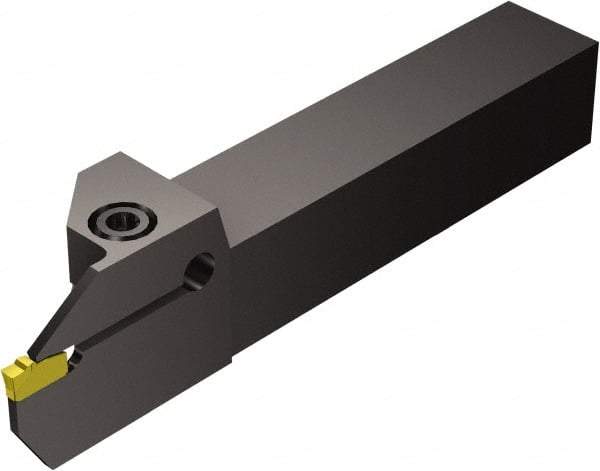

Sandvik Coromant - F151.23, Internal, Right Hand, 1.26" Max Depth of Cut, Indexable Grooving Tool Holder - N151.2-600-5E Insert Compatibility, 1-1/4" Shank Height, 1-1/4" Shank Width, 6" OAL
Item #: 54936521
Brand: Sandvik Coromant
Model #: 5740940
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | F151.23 |
| Insert Compatibility | N151.2-600-5E |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Height (Inch) | 1-1/4 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Series | T-Max Q-Cut |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Seat Size | 60 |
| Mount Type | 11 |
| Manufacturers Catalog Number | 5740940 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N151.2-600- 5E |
| Shank Diameter (Decimal Inch) | 1.2500 |
