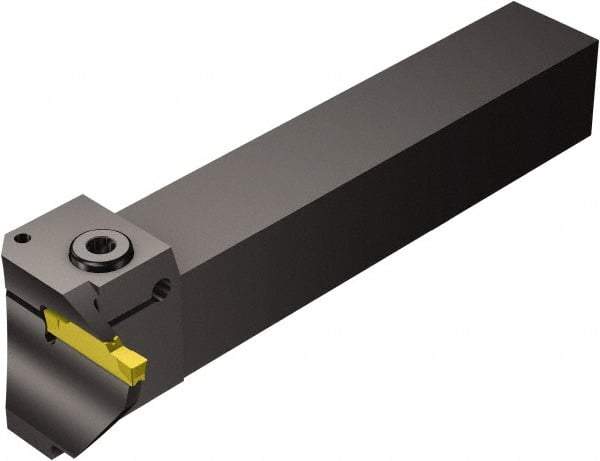

Sandvik Coromant - G123, Left Hand, 1/2" Max Depth of Cut, Indexable Grooving Tool Holder - N123H2-0400-0004-TF Insert Compatibility, 1" Shank Height, 1" Shank Width, 6-1/2" OAL
Item #: 54936455
Brand: Sandvik Coromant
Model #: 5853823
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Type | Face Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Overall Length (Inch) | 6-1/2 |
| Overall Length (Decimal Inch) | 6.5000 |
| Toolholder Style | G123 |
| Insert Compatibility | N123H2-0400-0004-TF |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | CoroCut 1-2 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Seat Size | H |
| Minimum Hole Diameter (Decimal Inch) | 2.0472 |
| Maximum Bore Depth (Decimal Inch) | 0.9409 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5748 |
| Maximum Groove Outside Diameter (mm) | 72.00 |
| Minimum Axial Groove Inside Diameter(mm) | 52.00 |
| Head Length (Decimal Inch) | 0.5000 |
| Manufacturers Catalog Number | 5853823 |
| Toolholder Material | Steel |
| Shank Diameter (Decimal Inch) | 1.0000 |
