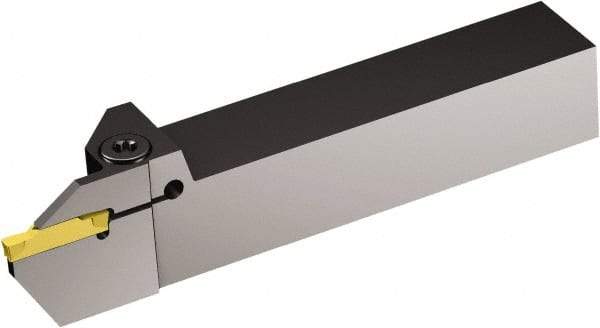

Sandvik Coromant - F123, Internal or External, Right Hand, 10mm Max Depth of Cut, Indexable Grooving Tool Holder - N123G2-0300-0003-TF Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 54936158
Brand: Sandvik Coromant
Model #: 5741077
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 10.00 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | F123 |
| Insert Compatibility | N123G2-0300-0003-TF |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | CoroCut 1-2 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting; Profiling |
| Insert Seat Size | G |
| Mount Type | 11 |
| Manufacturers Catalog Number | 5741077 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123G2 0300-0003-TF |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (mm) | 25.00 |
