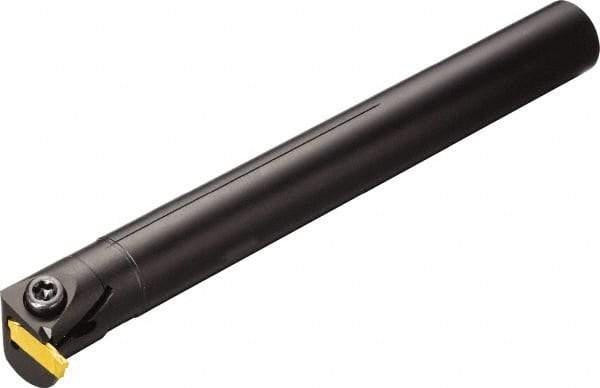

Sandvik Coromant - AG123, Internal, Left Hand, 0.177" Max Depth of Cut, 1.5mm Max Groove Width, Indexable Grooving Tool Holder - N123..CM, N123..GM Insert Compatibility, 5.9055" OAL, Through Coolant
Item #: 54935564
Brand: Sandvik Coromant
Model #: 5734814
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Maximum Groove Width (mm) | 1.50 |
| Maximum Groove Width (Decimal Inch) | 0.0591 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | AG123 |
| Insert Compatibility | N123..CM; N123..GM |
| Series | CoroCut 1-2 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Coolant Hole Diameter (Decimal Inch) | 0.2360 |
| Insert Holding Method | Screw |
| Insert Seat Size | D |
| Minimum Hole Diameter (Decimal Inch) | 0.9844 |
| Maximum Hole Depth (Decimal Inch) | 0.9840 |
| Maximum Bore Depth (Decimal Inch) | 0.9840 |
| igrvh Maximum Bore Depth (mm) | 25.00 |
| Center to Cutting Edge (mm) | 12.43 |
| Center to Cutting Edge (Decimal Inch) | 0.4894 |
| Head Length (Inch) | 63/64 |
| Head Length (Decimal Inch) | 0.9844 |
| Shank Length (Decimal Inch) | 4.9213 |
| Manufacturers Catalog Number | LAG123D016-10B |
| Toolholder Material | Steel |
| Complete Insert Compatibility | L123D2-0150-1001-CS 1125; L123D2-0150-1001-CS 4125; L123D2-0150-1501-CS 1125; L123D2-0150-1501-CS 4125; N123D2-0150-0001-GF 1105; N123D2-0150-0001-GF 1125; N123D2-0150-0001-GF 4125; N123D2-0150-0001-GF 525; N123D2-0150-0002-CM 1105; N123D2-0150-0002-CM 11 |
| Minimum Bore Diameter (Decimal Inch) | 0.9840 |
| Minimum BoreDiameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.6250 |
