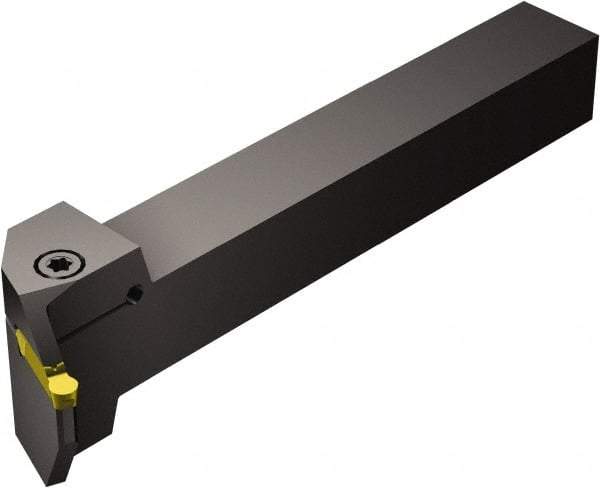

Sandvik Coromant - N123J2-0500-0004-TF, R/LX123.. B-070 (INCH) Left Hand Indexable Profiling Toolholder - 1-1/4" Shank Height x 1-1/4" Shank Width, 7.4803" Long, Steel
Item #: 54935358
Brand: Sandvik Coromant
Model #: 5734859
Exact Tooling IR#: 04
Features and Benefits
Steel is a commonly used material as an econmical alternative for short-run jobs and its ability to be altered for a specific task.
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Rake | Neutral |
| Insert Compatibility | N123J2-0500-0004-TF |
| Toolholder Style | R/LX123.. B-070 (INCH) |
| Series | CoroCut 1-2 |
| Toolholder Material | Steel |
| Through Coolant | No |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 7.4803 |
| Insert Holding Method | Screw |
| Rake Angle | 0 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.9173 |
| Head Length (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | N123J2-0500-0004-TF |
