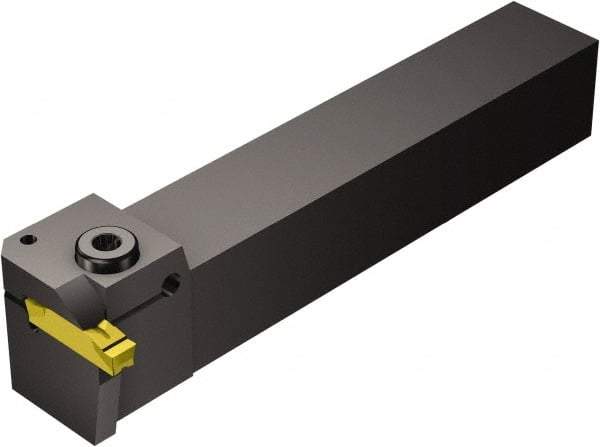

Sandvik Coromant - G123, Left Hand, 8.13mm Max Depth of Cut, Indexable Grooving Tool Holder - N123K2-0600-0004-TF Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 54934617
Brand: Sandvik Coromant
Model #: 5733117
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3201 |
| Maximum Depth of Cut (mm) | 8.13 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | G123 |
| Insert Compatibility | N123K2-0600-0004-TF |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | CoroCut 1-2 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Insert Seat Size | K |
| Minimum Hole Diameter (Decimal Inch) | 1.3386 |
| Maximum Bore Depth (Decimal Inch) | 2.1260 |
| Head Length (Decimal Inch) | 1.1417 |
| Mount Type | 11 |
| Manufacturers Catalog Number | 5733117 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123K2-600-0004-TF |
| Shank Diameter (Decimal Inch) | 1.0000 |
