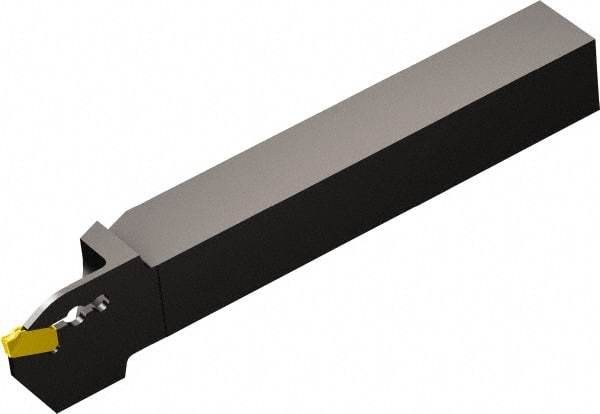

Sandvik Coromant - QD, External, Right Hand, 1" Max Depth of Cut, Indexable Grooving Tool Holder - QD-NF-0250-0002-CM Insert Compatibility, 3/4" Shank Height, 3/4" Shank Width, 5" OAL
Item #: 54933791
Brand: Sandvik Coromant
Model #: 6427607
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Toolholder Style | QD |
| Insert Compatibility | QD-NF-0250-0002-CM |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Series | CoroCut QD |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Insert Seat Size | F |
| Maximum Workpiece Diameter (Decimal Inch) | 2.0000 |
| Mount Type | 11 |
| Manufacturers Catalog Number | 6427607 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | QD-NF-0250-0002-CM |
| Shank Diameter (Decimal Inch) | 0.7500 |
