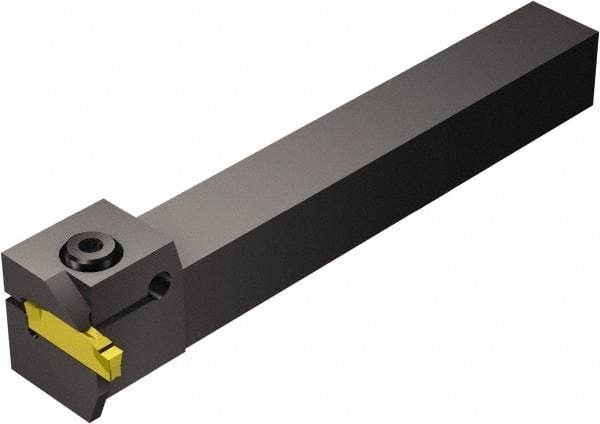

Sandvik Coromant - G123, Left Hand, 7.11mm Max Depth of Cut, Indexable Grooving Tool Holder - N123G2-0300-0003-TF Insert Compatibility, 3/4" Shank Height, 3/4" Shank Width, 5" OAL
Item #: 54933346
Brand: Sandvik Coromant
Model #: 5963101
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2799 |
| Maximum Depth of Cut (mm) | 7.11 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Toolholder Style | G123 |
| Insert Compatibility | N123G2-0300-0003-TF |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Series | CoroCut 1-2 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Insert Seat Size | G |
| Minimum Hole Diameter (Decimal Inch) | 1.3386 |
| Maximum Bore Depth (Decimal Inch) | 1.6732 |
| Head Length (Decimal Inch) | 0.9252 |
| Mount Type | 11 |
| Manufacturers Catalog Number | 5963101 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123G2 0300-0003-TF |
| Shank Diameter (Decimal Inch) | 0.7500 |
