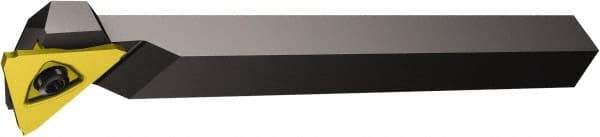

Sandvik Coromant - F123, External, Right Hand, 6.4mm Max Depth of Cut, Indexable Grooving Tool Holder - N123T3-0150-CM Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 54932850
Brand: Sandvik Coromant
Model #: 5740938
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Maximum Depth of Cut (mm) | 6.40 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | F123 |
| Insert Compatibility | N123T3-0150-CM |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | CoroCut 3 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting; Profiling |
| Insert Seat Size | T |
| Mount Type | 11 |
| Manufacturers Catalog Number | 5740938 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123T3-0150- CM |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (mm) | 25.00 |
