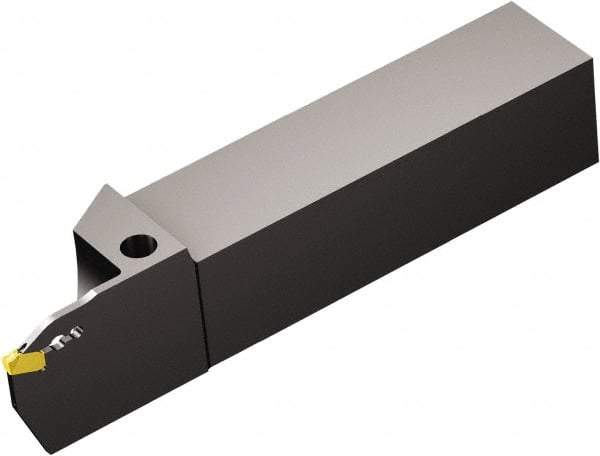

Sandvik Coromant - QD, External, Left Hand, 1.3" Max Depth of Cut, Indexable Grooving Tool Holder - QD-NG-0300-0002-CM Insert Compatibility, 1-1/4" Shank Height, 1-1/4" Shank Width, 7" OAL, Through Coolant
Item #: 54932389
Brand: Sandvik Coromant
Model #: 6427579
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.3000 |
| Overall Length (Inch) | 7 |
| Overall Length (Decimal Inch) | 7.0000 |
| Toolholder Style | QD |
| Insert Compatibility | QD-NG-0300-0002-CM |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Height (Inch) | 1-1/4 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Series | CoroCut QD |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Insert Seat Size | G |
| Maximum Workpiece Diameter (Decimal Inch) | 2.6000 |
| Mount Type | 11 |
| Manufacturers Catalog Number | 6427579 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | QD-NG-0300-0002-CM |
| Shank Diameter (Decimal Inch) | 1.2500 |
