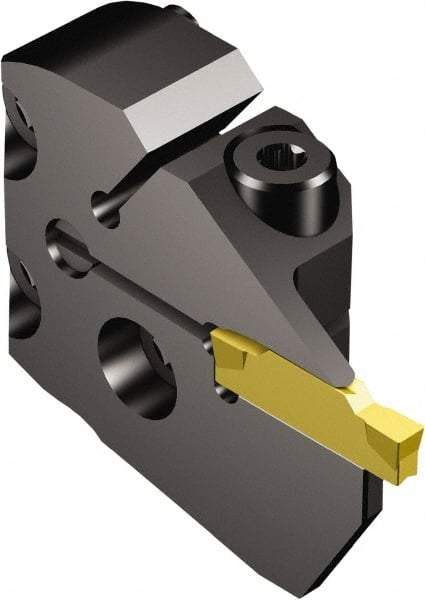

Sandvik Coromant - 570-xxR/L123..C Insert, 18mm Head Length, Modular Grooving Cutting Unit Head - Left Hand Cut, System Size 40, Through Coolant, Series CoroCut 1-2
Item #: 54932207
Brand: Sandvik Coromant
Model #: 5765151
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 40 |
| Series Name | CoroCut 1-2 |
| Cutting Direction | Left Hand |
| Modular Head Style | Cutting Head |
| Insert Style | 570-xxR/L123..C |
| Head Length/Projection (mm) | 18.00 |
| Head Length/Projection (Decimal Inch) | 0.7087 |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 92.00 |
| Minimum Hole Diameter (Decimal Inch) | 3.6221 |
| Complete Insert Compatibility | N123K2-600-0004-TF |
| Maximum Depth of Cut (mm) | 17.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6693 |
