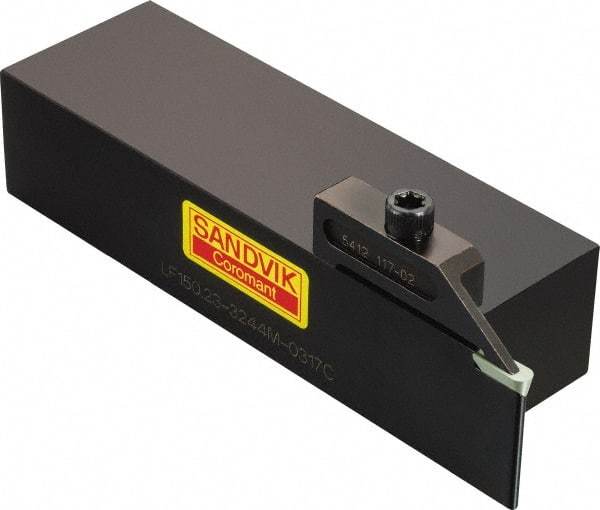

Sandvik Coromant - F150.23, External, Right Hand, 19mm Max Depth of Cut, Indexable Grooving Tool Holder - 150.23-0317 Insert Compatibility, 32mm Shank Height, 44mm Shank Width, 150mm OAL
Item #: 54932181
Brand: Sandvik Coromant
Model #: 5741017
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Maximum Depth of Cut (mm) | 19.00 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | F150.23 |
| Insert Compatibility | 150.23-0317 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Shank Width/Diameter (mm) | 44.00 |
| Shank Width/Diameter (Decimal Inch) | 1.7323 |
| Series | T-Max |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Insert Seat Size | 1 |
| Mount Type | 11 |
| Manufacturers Catalog Number | 5741017 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | CSG 4125 |
| Shank Diameter (Decimal Inch) | 1.7323 |
| Shank Diameter (mm) | 44.00 |
