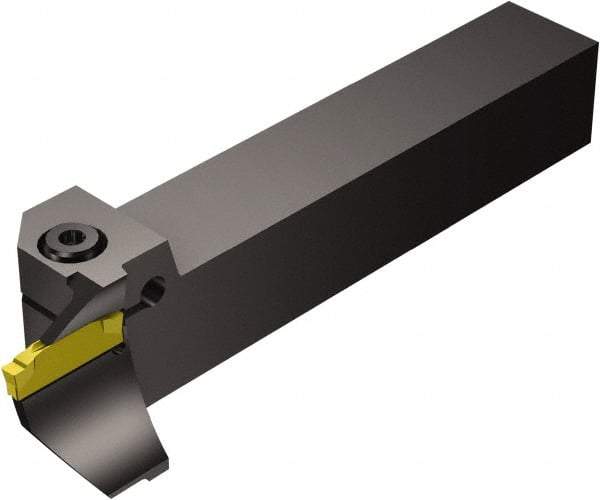

Sandvik Coromant - F123, Right Hand, 13mm Max Depth of Cut, Indexable Grooving Tool Holder - N123H2-0400-0004-TF Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 125mm OAL
Item #: 54932173
Brand: Sandvik Coromant
Model #: 5908160
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Maximum Depth of Cut (mm) | 13.00 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Toolholder Style | F123 |
| Insert Compatibility | N123H2-0400-0004-TF |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | CoroCut 1-2 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Seat Size | H |
| Minimum Hole Diameter (mm) | 40.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.5748 |
| Maximum Bore Depth (Decimal Inch) | 1.3386 |
| Back of Bar to Cutting Edge (mm) | 21.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8268 |
| Maximum Groove Outside Diameter (mm) | 60.00 |
| Minimum Axial Groove Inside Diameter(mm) | 40.00 |
| Head Length (mm) | 13.00 |
| Head Length (Decimal Inch) | 0.5118 |
| Manufacturers Catalog Number | 5908160 |
| Toolholder Material | Steel |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Shank Diameter (mm) | 20.00 |
