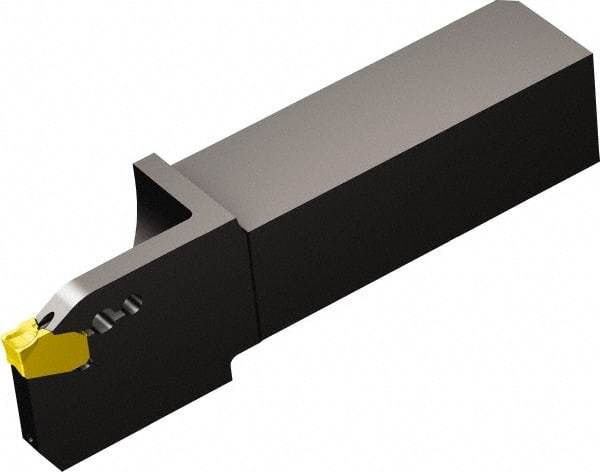

Sandvik Coromant - QSQD, External, Right Hand, 40mm Max Depth of Cut, Indexable Grooving Tool Holder - QD-NJ-0500-0002-CM Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 125.6mm OAL, Through Coolant
Item #: 54932041
Brand: Sandvik Coromant
Model #: 6427687
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 40.00 |
| Overall Length (mm) | 125.60 |
| Overall Length (Decimal Inch) | 4.9449 |
| Toolholder Style | QSQD |
| Insert Compatibility | QD-NJ-0500-0002-CM |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | CoroCut QD |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Insert Seat Size | J |
| Maximum Workpiece Diameter (mm) | 80.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 3.1496 |
| Head Length (mm) | 41.60 |
| Head Length (Decimal Inch) | 1.6378 |
| Mount Type | 11 |
| Manufacturers Catalog Number | 6427687 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | QD-NJ-0500-0002-CM |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (mm) | 25.00 |
