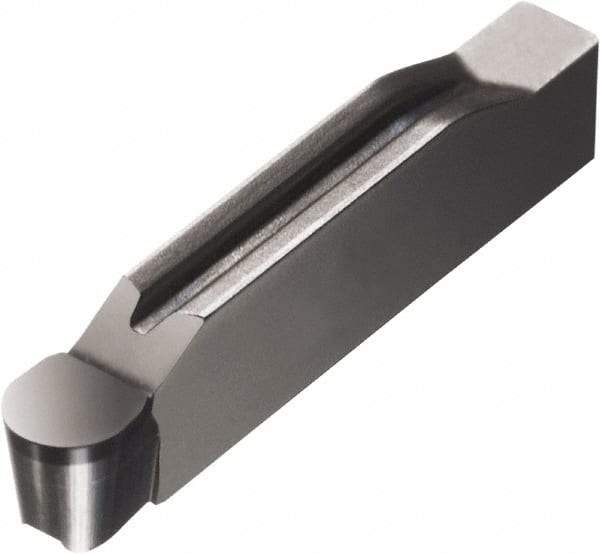

Sandvik Coromant - 0635N123 Grade 7015, 6.35mm Cutting Width CBN Grooving Insert - 0.75mm Max Depth of Cut, Neutral, 3.18mm Corner Radius, TiN Finish
Item #: 54929989
Brand: Sandvik Coromant
Model #: 5918496
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | 0635 |
| Material | CBN |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 0.75 |
| Maximum Depth of Cut (Decimal Inch) | 0.0295 |
| Manufacturer's Grade | 7015 |
| Coating | TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Corner Radius (mm) | 3.18 |
| Corner Radius (Decimal Inch) | 0.1252 |
| Coating Process | PVD |
| Overall Length (mm) | 25.05 |
| Overall Length (Decimal Inch) | 0.9862 |
| Series | CoroCut 1-2 |
| Manufacturers Catalog Number | 5918496 |
