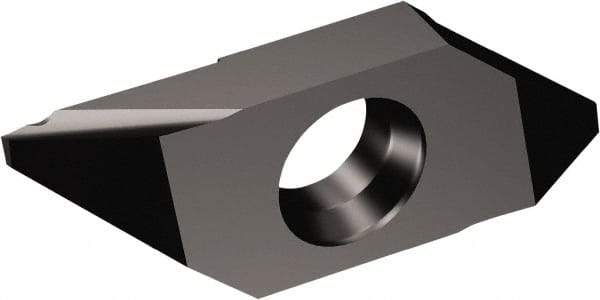

Sandvik Coromant - MABL3020 Grade 1105 Carbide Turning Insert - TiAlN2 Finish, Parallelogram, 1/8" Thick, 0.2mm Corner Radius
Item #: 54928312
Brand: Sandvik Coromant
Model #: 6071709
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MABL |
| Insert Size | 3020 |
| Material | Carbide |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1252 |
| Thickness (mm) | 3.18 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | 1105 |
| Coating | TiAlN2 |
| ISO Number | MABL30201105 |
| Relief Angle | 6 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6071709 |
| Primary Workpiece Material | S |
| Secondary Workpiece Material | S |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | CoroCut XS |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| Shape | Parallelogram |
