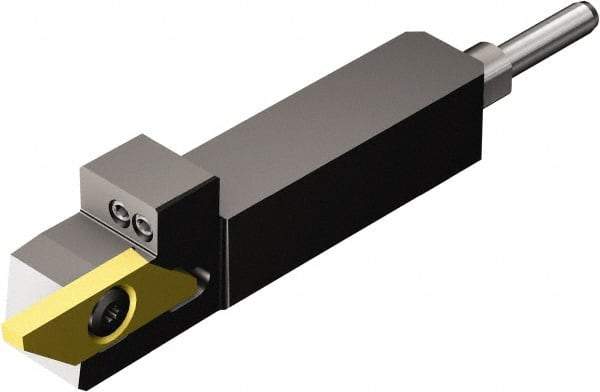

Sandvik Coromant - QSSMAL, External, Right Hand, 8.5mm Max Depth of Cut, Indexable Grooving Tool Holder - MACR 3 200-N Insert Compatibility, 16mm Shank Height, 16mm Shank Width, 70mm OAL, Through Coolant
Item #: 54925516
Brand: Sandvik Coromant
Model #: 6010220
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3346 |
| Maximum Depth of Cut (mm) | 8.50 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Toolholder Style | QSSMAL |
| Insert Compatibility | MACR 3 200-N |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Series | CoroCut XS |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Insert Seat Size | 3 |
| Mount Type | 11 |
| Manufacturers Catalog Number | 6010220 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | MACR 3 200-N |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Shank Diameter (mm) | 16.00 |
