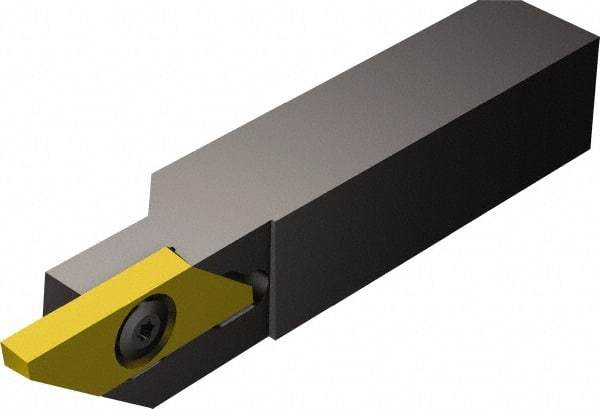

Sandvik Coromant - QSSMAL, External, Right Hand, 0.3346" Max Depth of Cut, Indexable Grooving Tool Holder - MACR 3 200-N Insert Compatibility, 1/2" Shank Height, 1/2" Shank Width, 2.7559" OAL - Benchmark Tooling

Sandvik Coromant - QSSMAL, External, Right Hand, 0.3346" Max Depth of Cut, Indexable Grooving Tool Holder - MACR 3 200-N Insert Compatibility, 1/2" Shank Height, 1/2" Shank Width, 2.7559" OAL


Item #: 54925490
Brand: Sandvik Coromant
Model #: 5739175
Exact Tooling IR#: 04

Product Specifications
Internal or External External
Toolholder Type NonFace Grooving
Hand of Holder Right Hand
Maximum Depth of Cut (Decimal Inch) 0.3346
Overall Length (Decimal Inch) 2.7559
Toolholder Style QSSMAL
Insert Compatibility MACR 3 200-N
Shank Height (Decimal Inch) 0.5000
Shank Height (Inch) 1/2
Shank Width/Diameter (Inch) 1/2
Shank Width/Diameter (Decimal Inch) 0.5000
Series CoroCut XS
Through Coolant Non Coolant Through
Multi-Use Tool Yes
Multi-Use Application Grooving; Parting
Insert Seat Size 3
Mount Type 11
Manufacturers Catalog Number 5739175
Toolholder Material Steel
Complete Insert Compatibility MACR 3 200-N
Shank Diameter (Decimal Inch) 0.5000
$162.36
