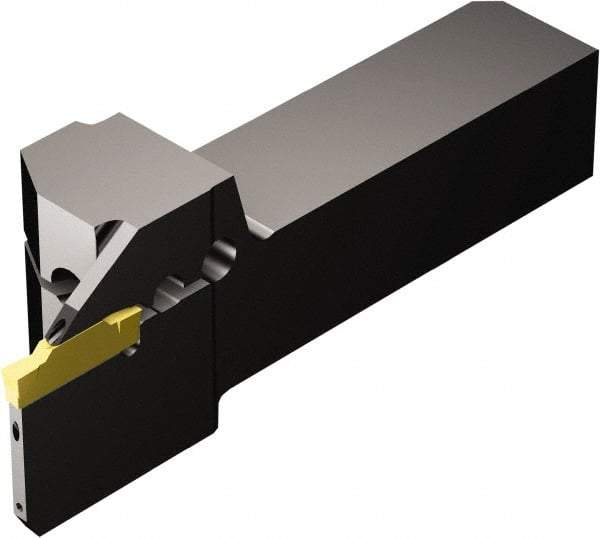

Sandvik Coromant - QS, Internal or External, Left Hand, 0.63" Max Depth of Cut, Indexable Grooving Tool Holder - N123G2-0300-0003-TF Insert Compatibility, 3/4" Shank Height, 3/4" Shank Width, 4.0789" OAL, Through Coolant
Item #: 54925383
Brand: Sandvik Coromant
Model #: 6537403
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Overall Length (Decimal Inch) | 4.0789 |
| Toolholder Style | QS |
| Insert Compatibility | N123G2-0300-0003-TF |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Series | CoroCut 1-2 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting; Profiling |
| Insert Seat Size | G |
| Head Length (Decimal Inch) | 1.3623 |
| Mount Type | 11 |
| Manufacturers Catalog Number | 6537403 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123G2 0300-0003-TF |
| Shank Diameter (Decimal Inch) | 0.7500 |
