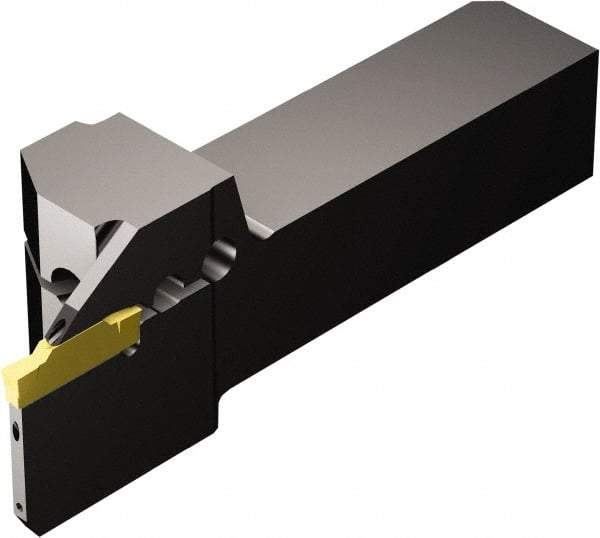

Sandvik Coromant - QS, Internal or External, Right Hand, 0.63" Max Depth of Cut, Indexable Grooving Tool Holder - N123E2-0200-0002-CM Insert Compatibility, 1" Shank Height, 1" Shank Width, 4.6104" OAL, Through Coolant
Item #: 54925268
Brand: Sandvik Coromant
Model #: 6537331
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Overall Length (Decimal Inch) | 4.6104 |
| Toolholder Style | QS |
| Insert Compatibility | N123E2-0200-0002-CM |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | CoroCut 1-2 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting; Profiling |
| Insert Seat Size | E |
| Head Length (Decimal Inch) | 1.3033 |
| Mount Type | 11 |
| Manufacturers Catalog Number | 6537331 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123E2 0200-0002-CM |
| Shank Diameter (Decimal Inch) | 1.0000 |
