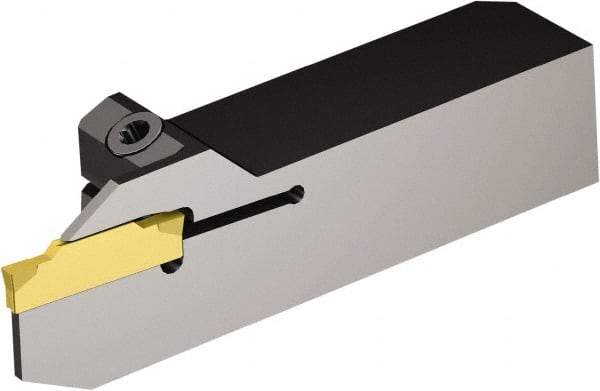

Sandvik Coromant - QS, Internal or External, Right Hand, 10mm Max Depth of Cut, Indexable Grooving Tool Holder - N123E2-0200-0002-CM Insert Compatibility, 10mm Shank Height, 10mm Shank Width, 70mm OAL
Item #: 54925201
Brand: Sandvik Coromant
Model #: 5738689
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 10.00 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Toolholder Style | QS |
| Insert Compatibility | N123E2-0200-0002-CM |
| Shank Height (mm) | 10.00 |
| Shank Height (Decimal Inch) | 0.3937 |
| Shank Width/Diameter (mm) | 10.00 |
| Shank Width/Diameter (Decimal Inch) | 0.3937 |
| Series | CoroCut 1-2 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting; Profiling |
| Insert Seat Size | E |
| Maximum Workpiece Diameter (mm) | 20.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 0.7874 |
| Mount Type | 11 |
| Manufacturers Catalog Number | 5738689 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123E2 0200-0002-CM |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
