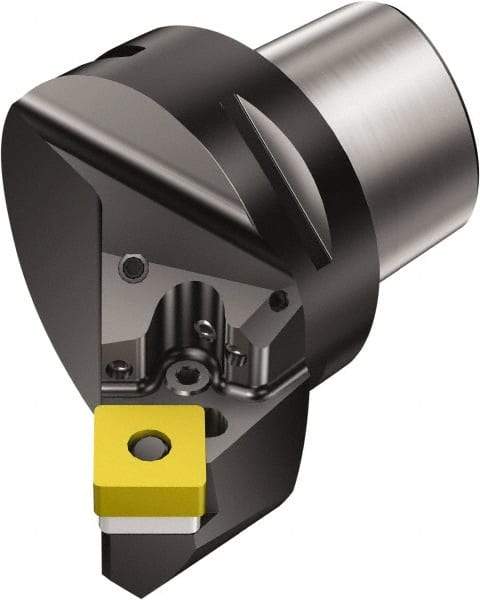

Sandvik Coromant - Left Hand Cut, Size C8, SNMG 643 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 55mm Ctr to Cutting Edge, 92.48mm Head Length, Through Coolant, Series T-Max P
Item #: 54915913
Brand: Sandvik Coromant
Model #: 5907967
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C8 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 92.48 |
| Head Length/Projection (Decimal Inch) | 3.6409 |
| Insert Style | SNMG 643 |
| Center to Cutting Edge (mm) | 55.00 |
| Center to Cutting Edge (Decimal Inch) | 2.1654 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 200.00 |
| Minimum Hole Diameter (Decimal Inch) | 7.8740 |
| Center to Cutting Height (mm) | 42.52 |
| Center to Cutting Height (Decimal Inch) | 1.6740 |
| Complete Insert Compatibility | SNMG 19 06 12 |
