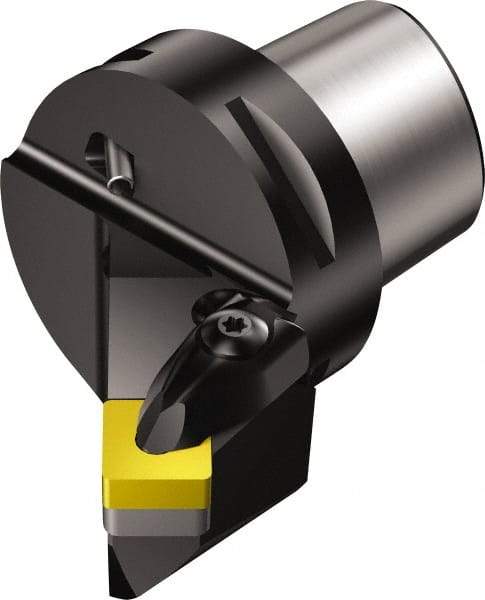

Sandvik Coromant - Right Hand Cut, Size C5, SNMG 543 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 35mm Ctr to Cutting Edge, 60.24mm Head Length, Through Coolant, Series T-Max P
Item #: 54915798
Brand: Sandvik Coromant
Model #: 5728676
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | T-Max P |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 60.24 |
| Head Length/Projection (Decimal Inch) | 2.3717 |
| Insert Style | SNMG 543 |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 125.00 |
| Minimum Hole Diameter (Decimal Inch) | 4.9213 |
| Center to Cutting Height (mm) | 24.76 |
| Center to Cutting Height (Decimal Inch) | 0.9748 |
| Complete Insert Compatibility | SNMG 15 06 12 |
