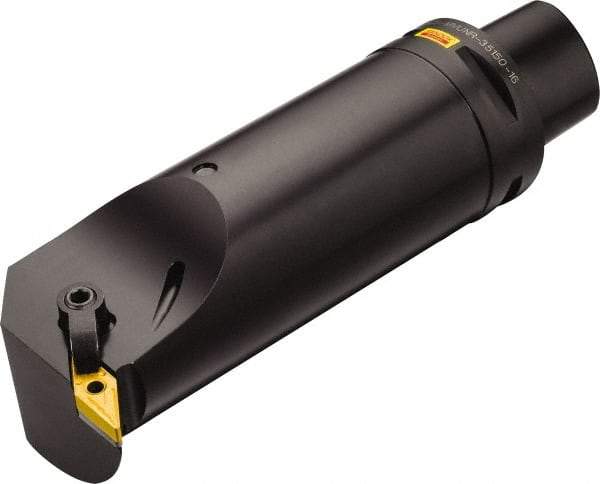

Sandvik Coromant - Right Hand Cut, Size C4, VNMG 332 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 27mm Ctr to Cutting Edge, 120mm Head Length, Through Coolant, Series T-Max P
Item #: 54915384
Brand: Sandvik Coromant
Model #: 5728340
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | T-Max P |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 120.00 |
| Head Length/Projection (Decimal Inch) | 4.7244 |
| Insert Style | VNMG 332 |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 50.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Center to Cutting Height (mm) | 100.00 |
| Center to Cutting Height (Decimal Inch) | 3.9370 |
| Complete Insert Compatibility | VNMG 16 04 08 |
