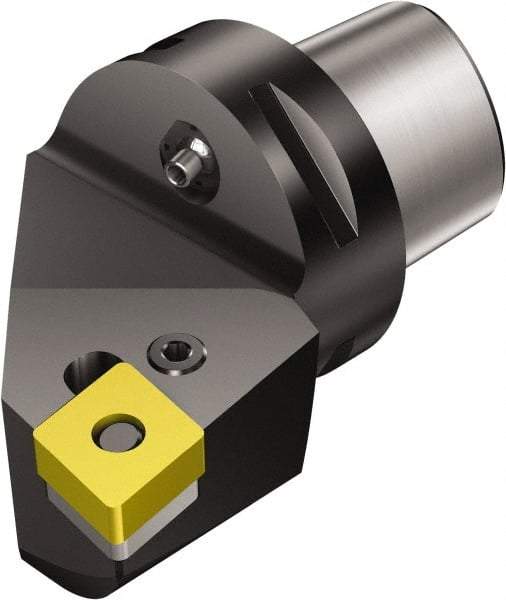

Sandvik Coromant - Left Hand, C6 CNMG 643 Modular Turning and Profiling Cutting Unit Head - Lever Holding Method, Inch Hole Diameter, Through Coolant
Item #: 54914718
Brand: Sandvik Coromant
Model #: 5729177
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 65.00 |
| Head Length/Projection (Decimal Inch) | 2.5591 |
| Insert Style | CNMG 643 |
| Center to Cutting Edge (mm) | 45.00 |
| Center to Cutting Edge (Decimal Inch) | 1.7717 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Complete Insert Compatibility | CNMG 19 06 12 |
