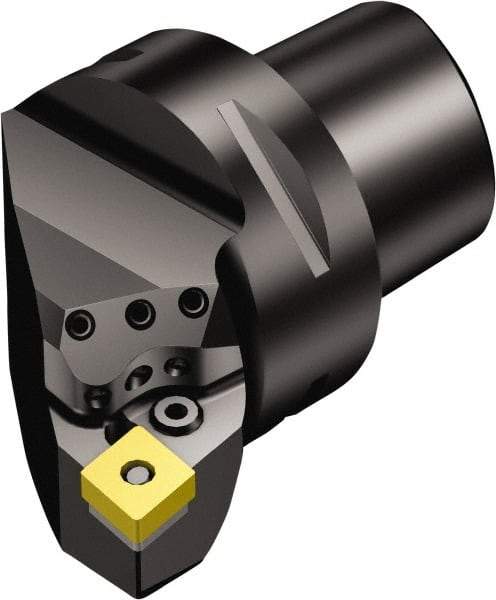

Sandvik Coromant - Left Hand, C8 CNMG 543 Modular Turning and Profiling Cutting Unit Head - Lever Holding Method, 4.9213 Inch Hole Diameter, Through Coolant
Item #: 54914676
Brand: Sandvik Coromant
Model #: 5853300
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C8 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 80.00 |
| Head Length/Projection (Decimal Inch) | 3.1496 |
| Insert Style | CNMG 543 |
| Center to Cutting Edge (mm) | 55.00 |
| Center to Cutting Edge (Decimal Inch) | 2.1654 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 125.00 |
| Minimum Hole Diameter (Decimal Inch) | 4.9213 |
| Complete Insert Compatibility | CNMG 16 06 12 |
