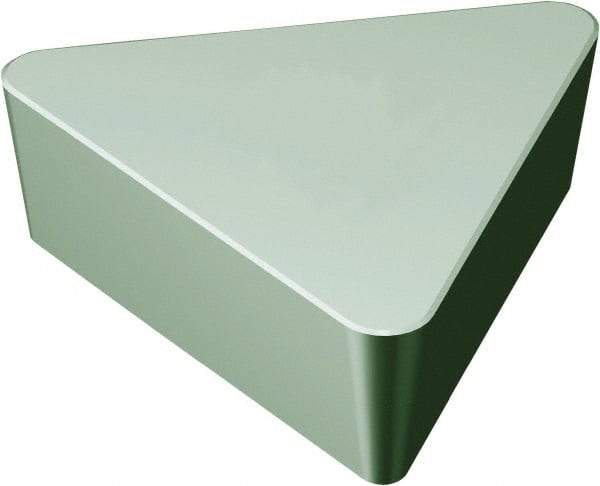

Sandvik Coromant - TPGN323 Grade 670 Ceramic Turning Insert - Uncoated, 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 3/64" Corner Radius
Item #: 54911185
Brand: Sandvik Coromant
Model #: 5754914
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | TPGN |
| Insert Size | 323 |
| Material | Ceramic |
| Length (mm) | 16.50 |
| Length (Decimal Inch) | 0.6496 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1252 |
| Thickness (mm) | 3.18 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Manufacturer's Grade | 670 |
| Coating | Uncoated |
| ISO Number | TPGN160312T01020670 |
| Relief Angle | 11 |
| Manufacturers Catalog Number | 5754914 |
| Primary Workpiece Material | H; S |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Maximum Depth of Cut (mm) | 15.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.6024 |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Negative Land |
| Shape | Triangle |
