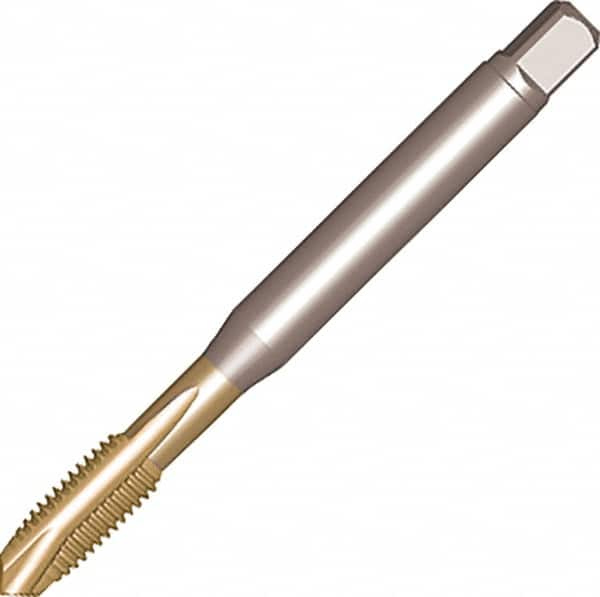

Sandvik Coromant - #6-32 UNC, 3 Flute, High Speed Steel Spiral Point Tap - Plug Chamfer, Right Hand Thread, 57.4mm OAL, 10.4mm Thread Length, 4mm Shank Diam, 2B Class of Fit, Series CoroTap 200
Item #: 54910682
Brand: Sandvik Coromant
Model #: 6539542
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #6-32 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 2B |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.2598 |
| Overall Length (mm) | 57.40 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 0.4094 |
| Thread Length (mm) | 10.40 |
| Series/List | CoroTap 200 |
| Neck Length (Decimal Inch) | 0.3780 |
| Style | Spiral Point |
| Tapping Depth (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Shank Diameter (mm) | 4.00 |
| Material Application | Cast Iron; Stainless Steel; Steel |
