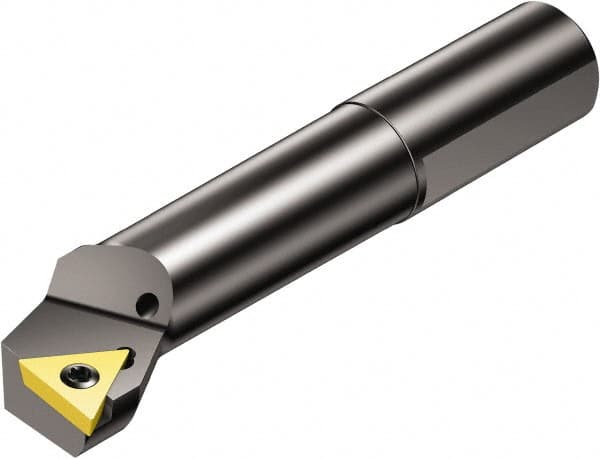

Sandvik Coromant - 14mm Min Bore Diam, 86mm OAL, 12mm Shank Diam, R429U-Axx..TC Indexable Boring Bar - Screw-On Holding Method
Item #: 54907878
Brand: Sandvik Coromant
Model #: 6415711
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | R429U-Axx..TC |
| Minimum Bore Diameter (mm) | 14.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.5512 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 86.00 |
| Overall Length (Decimal Inch) | 3.3858 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw-On |
| Rake | Neutral |
| Lead Angle | 92 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TCMT 09 02 02; TCMT 1.8(1.5)0 |
| Toolholder Material | Steel |
