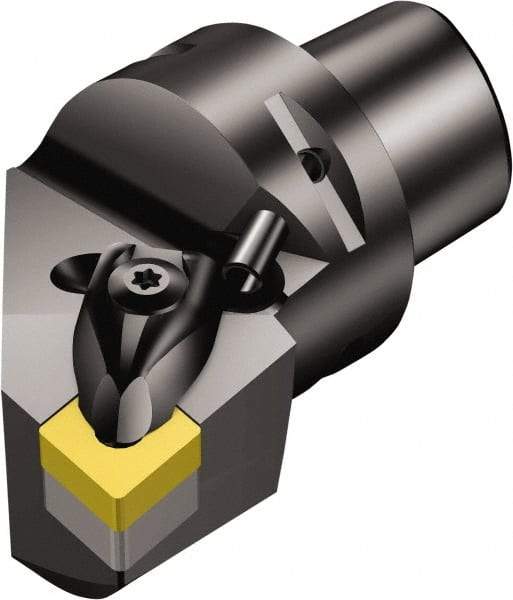

Sandvik Coromant - Right Hand Cut, Size C4, CNMG 543 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 27mm Ctr to Cutting Edge, 55mm Head Length, Through Coolant, Series T-Max P
Item #: 54906391
Brand: Sandvik Coromant
Model #: 5727534
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | T-Max P |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 55.00 |
| Head Length/Projection (Decimal Inch) | 2.1654 |
| Insert Style | CNMG 543 |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 125.00 |
| Minimum Hole Diameter (Decimal Inch) | 4.9213 |
| Complete Insert Compatibility | CNMG 16 06 12 |
