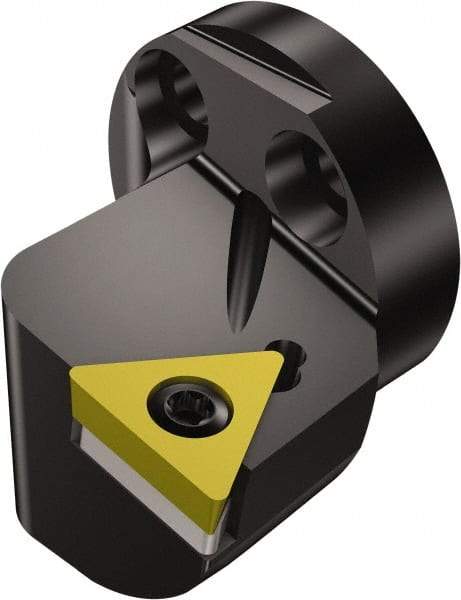

Sandvik Coromant - Left Hand, 25 TCMT 221 Modular Turning and Profiling Cutting Unit Head - Screw and Clamp Holding Method, 1.2598 Inch Hole Diameter, Through Coolant
Item #: 54906102
Brand: Sandvik Coromant
Model #: 5764410
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 25 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 20.00 |
| Head Length/Projection (Decimal Inch) | 0.7874 |
| Insert Style | TCMT 221 |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 32.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.2598 |
| Complete Insert Compatibility | TCMT 11 03 04 |
