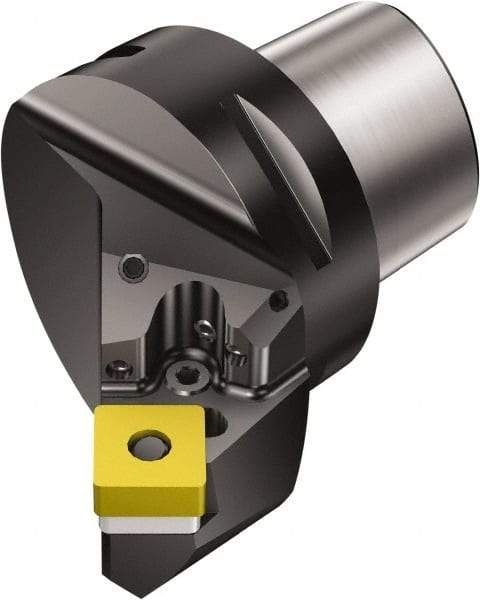

Sandvik Coromant - Right Hand Cut, Size C6, SNMG 432 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 45mm Ctr to Cutting Edge, 64.32mm Head Length, Through Coolant, Series T-Max P
Item #: 54905625
Brand: Sandvik Coromant
Model #: 5729693
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | T-Max P |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 64.32 |
| Head Length/Projection (Decimal Inch) | 2.5323 |
| Insert Style | SNMG 432 |
| Center to Cutting Edge (mm) | 45.00 |
| Center to Cutting Edge (Decimal Inch) | 1.7717 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 110.00 |
| Minimum Hole Diameter (Decimal Inch) | 4.3307 |
| Center to Cutting Height (mm) | 36.68 |
| Center to Cutting Height (Decimal Inch) | 1.4441 |
| Complete Insert Compatibility | SNMG 12 04 08 |
