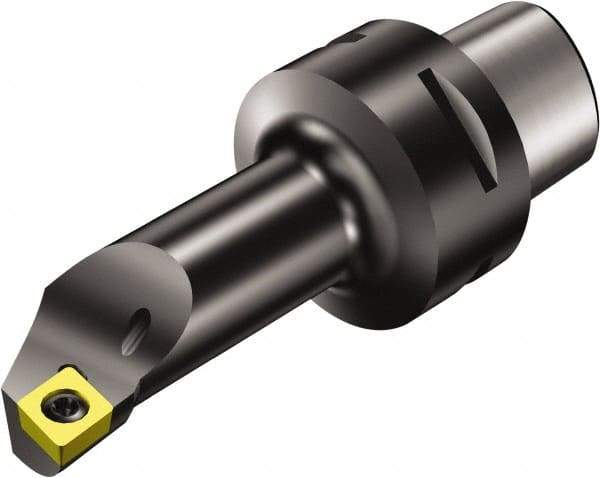

Sandvik Coromant - Right Hand Cut, Size C3, CCMT 432 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 17mm Ctr to Cutting Edge, 90mm Head Length, Through Coolant, Series CoroTurn 107
Item #: 54905443
Brand: Sandvik Coromant
Model #: 5727229
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C3 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 90.00 |
| Head Length/Projection (Decimal Inch) | 3.5433 |
| Insert Style | CCMT 432 |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 32.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.2598 |
| Center to Cutting Height (mm) | 74.00 |
| Center to Cutting Height (Decimal Inch) | 2.9134 |
| Complete Insert Compatibility | CCMT 12 04 08 |
