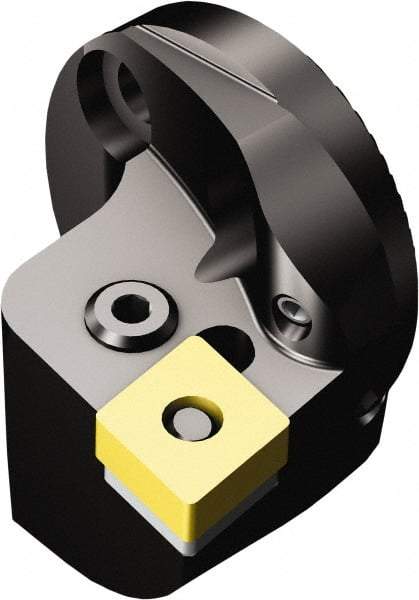

Sandvik Coromant - Left Hand Cut, Size 25, CNMG 322 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 19mm Ctr to Cutting Edge, 28mm Head Length, Through Coolant, Series T-Max P
Item #: 54905195
Brand: Sandvik Coromant
Model #: 5962603
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 25 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 28.00 |
| Head Length/Projection (Decimal Inch) | 1.1024 |
| Insert Style | CNMG 322 |
| Center to Cutting Edge (mm) | 19.00 |
| Center to Cutting Edge (Decimal Inch) | 0.7480 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 34.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.3386 |
| Complete Insert Compatibility | CNMG 09 03 08 |
