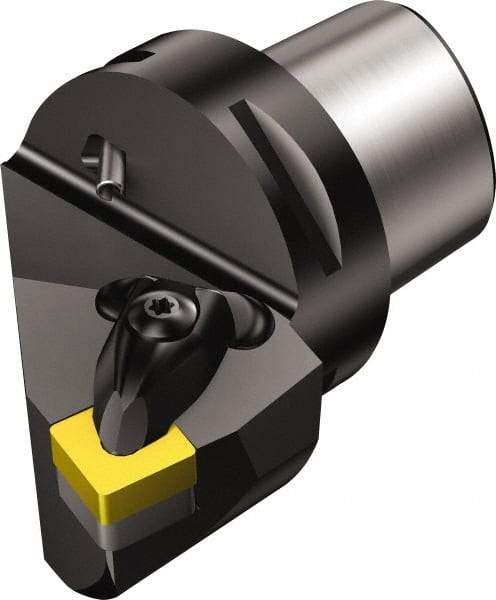

Sandvik Coromant - Right Hand Cut, Size C5, SNMG 432 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 27mm Ctr to Cutting Edge, 60mm Head Length, Through Coolant, Series T-Max P
Item #: 54904636
Brand: Sandvik Coromant
Model #: 5728731
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | T-Max P |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 60.00 |
| Head Length/Projection (Decimal Inch) | 2.3622 |
| Insert Style | SNMG 432 |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 165.00 |
| Minimum Hole Diameter (Decimal Inch) | 6.4960 |
| Complete Insert Compatibility | SNMG 12 04 08 |
