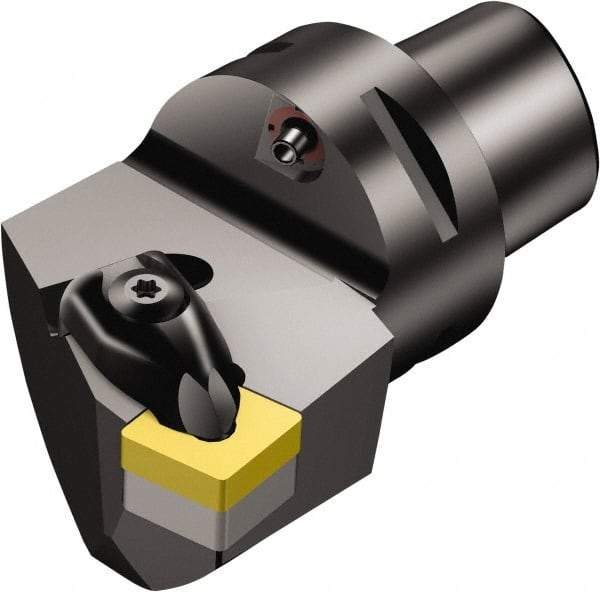

Sandvik Coromant - Right Hand Cut, Size C8, CNMG 643 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 55mm Ctr to Cutting Edge, 80mm Head Length, Through Coolant, Series T-Max P
Item #: 54904578
Brand: Sandvik Coromant
Model #: 5729668
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C8 |
| Series Name | T-Max P |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 80.00 |
| Head Length/Projection (Decimal Inch) | 3.1496 |
| Insert Style | CNMG 643 |
| Center to Cutting Edge (mm) | 55.00 |
| Center to Cutting Edge (Decimal Inch) | 2.1654 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 100.00 |
| Minimum Hole Diameter (Decimal Inch) | 3.9370 |
| Complete Insert Compatibility | CNMG 19 06 12 |
